算力网络硬件配置

英博云的H800、A800机器，配置有专门的算力网络，具体的配置如下：

节点类型NVLinkPCIE算力网络(单卡)算力网络(整机)存储网络(整机)
A800(12 - 4)Lane x 25GB = 200GBPCIE4.0 x 16 = 32GBCX-6: 200Gb/8 = 25GB25GB x 8 = 200GBCX-7: 400Gb/8 = 50GB
H800(18 - 6)Lane x 25GB = 300GBPCIE5.0 x 16 = 64GBCX-7: 400Gb/8 = 50GB50GB x 8 = 400GBCX-7: 400Gb/8 = 50GB

HCA命名规范

英博云的H800、A800机器，具备8张HCA网卡，具体命名为：

mlx5_100
mlx5_101
mlx5_102
mlx5_103
mlx5_104
mlx5_105
mlx5_106
mlx5_107

在开发机中使用算力网络

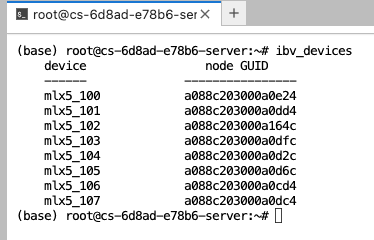

在开发机中，可以用ibv_devices命令查看，如下：

算力网络查看

多机通信通常基于 NCCL 框架，为了在开发机中顺利使用算力网络，建议设置如下环境变量：

export NCCL_IB_DISABLE=0                                                                    # 启用IB
export NCCL_IB_HCA=mlx5_100,mlx5_101,mlx5_102,mlx5_103,mlx5_104,mlx5_105,mlx5_106,mlx5_107  # 指定IB设备
export NCCL_IB_GID_INDEX=3
export NCCL_SOCKET_IFNAME=eth0                                                              # Bootstrap网络接口

基于开发机进行多机训练，更多信息可以参考这里。

在k8s工作负载中使用算力网络

若要引用算力网络，需要在资源中声明：

rdma/hca_shared_devices_ib: 1

以下是基于kubeflow的MPIJob运行2机16卡nccl测试的例子，这里启用了2个worker，每个worker引用8张A800 GPU卡，8张算力网卡；launcher采用普通的CPU节点。

注意：

  • 关于具体的节点类型与实例规格配置，参考这里
---
apiVersion: kubeflow.org/v1
kind: MPIJob
metadata:
  name: nccl-test-slot8-worker2
spec:
  slotsPerWorker: 8
  cleanPodPolicy: Running
  mpiReplicaSpecs:
    Launcher:
      replicas: 1
      template:
        spec:
          hostNetwork: true
          hostPID: false
          affinity:
            nodeAffinity:
              requiredDuringSchedulingIgnoredDuringExecution:
                nodeSelectorTerms:
                - matchExpressions:
                  - key: cloud.ebtech.com/cpu # 指定节点类型，这里为CPU节点
                    operator: In
                    values:
                    - amd-epyc-milan
          containers:
          - image: registry-cn-beijing2-internal.ebtech-inc.com/ebsys/pytorch:2.5.1-cuda12.2-python3.10-ubuntu22.04-v09
            name: mpi-launcher
            command: ["/bin/bash", "-c"]
            args: [
                  "sleep 10 && \
                  mpirun \
                  -np 8 \
                  --allow-run-as-root \
                  -bind-to none \
                  -x LD_LIBRARY_PATH \
                  -x NCCL_IB_DISABLE=0 \
                  -x NCCL_IB_HCA=mlx5_100,mlx5_101,mlx5_102,mlx5_103,mlx5_104,mlx5_105,mlx5_106,mlx5_107 \
                  -x NCCL_SOCKET_IFNAME=bond0 \
                  -x NCCL_ALGO=RING \
                  -x NCCL_DEBUG=INFO \
                  -x SHARP_COLL_ENABLE_PCI_RELAXED_ORDERING=1 \
                  -x NCCL_COLLNET_ENABLE=0 \
                  /opt/nccl-tests/build/all_reduce_perf -b 1G -e 8G -f 2 -g 1 #-n 200 #-w 2 -n 20
                  ",
            ]
            resources:  # 指定实例规格，1core 2GB
              limits:
                cpu: "1"
                memory: "2Gi"
    Worker:
      replicas: 2
      template:
        spec:
          hostNetwork: true
          hostPID: false
          affinity:
            nodeAffinity:
              requiredDuringSchedulingIgnoredDuringExecution:
                nodeSelectorTerms:
                - matchExpressions:
                  - key: cloud.ebtech.com/gpu # 指定节点类型，这里为GPU-H800节点
                    operator: In
                    values:
                    - H800_NVLINK_80GB
          volumes:
          - emptyDir:
              medium: Memory
            name: dshm
          containers:
          - image: registry-cn-beijing2-internal.ebtech-inc.com/ebsys/pytorch:2.5.1-cuda12.2-python3.10-ubuntu22.04-v09
            name: mpi-worker
            command: ["/bin/bash", "-c"]
            volumeMounts:
            - mountPath: /dev/shm
              name: dshm
            securityContext:
                capabilities:
                  add:
                    - IPC_LOCK
            args:
                - |
                  echo "Starting sleep infinity..."
                  sleep infinity
            resources:
              limits:
                nvidia.com/gpu: 8  # 指定实例规格，8卡机器
                rdma/hca_shared_devices_ib: 8 # 8张HCA网卡
